Data Trend
A portlet that contains a chart showing the archived historical data on the Core Server. It shows the file count and size with a baseline computed from the number of vendor licenses in the license status directory, which is by default in C:\ProgramData\OpeniT\Data\license_status, multiplied by 24. The chart initially shows the following information:
- Summation of all the vendor licenses file counts and file sizes per day
- 90 Days worth of data
- License Polling (LicPoll2) data
Before using the Data Trend portlet, follow the instructions on Displaying Core Server Tracking pages in the Analysis Server.
How to conigure
Follow these instructions to configure the portlet:
-
Click the gear icon located at the upper-right corner of the portlet or in the portlet.
The configuration dialog should appear.
-
Provide the Label or the text displayed in the title bar of the portlet. The initial value is Data Trend: Last 90 Days.
-
Select among the available Vendor License, Package, and Feature.
-
Select among the available time ranges. The default is 365 days.
-
Click Save to continue or Cancel to disregard.
The chart should be displayed based on the selected configuration.
The chart contains Baseline, File Count, and File Size.

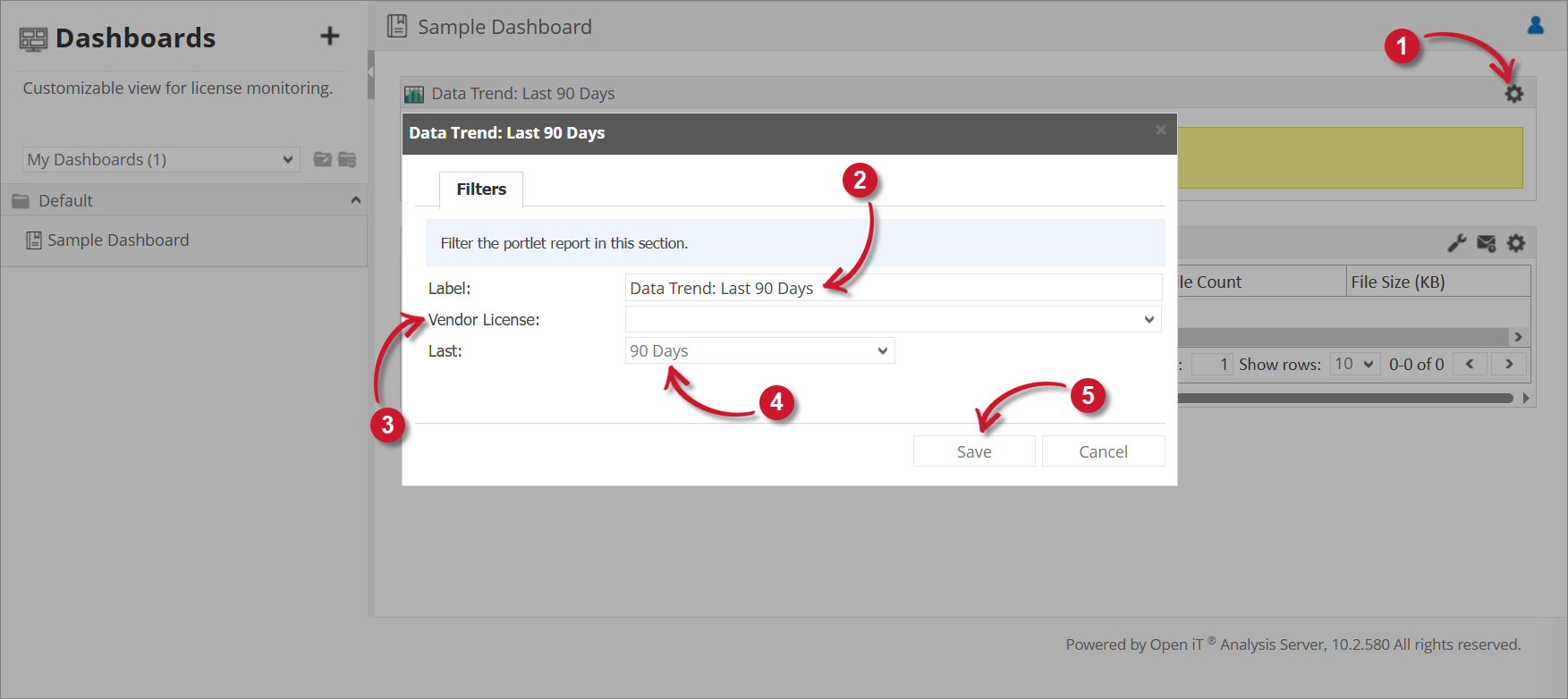

Data Trend Configuration

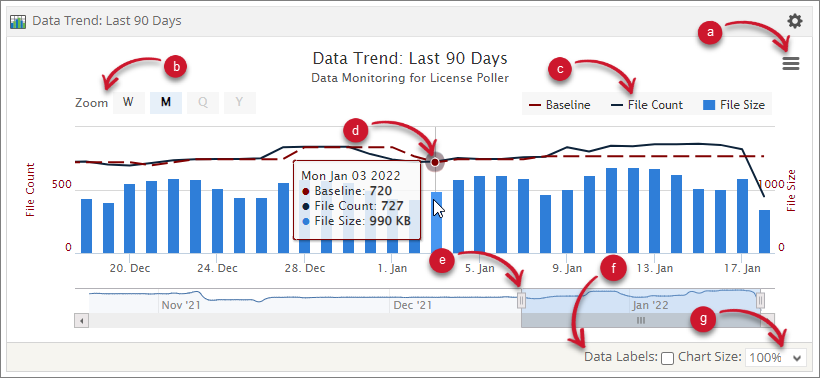

Chart Functionalities
The portlet contains some functionalities to manipulate the display. Use these descriptions to use these functionalities.
a. Export - choose among the available formats to export the chart.
b. Zoom - choose among the available time chunks to manipulate the displayed data.
- W - Weekly
- M - Monthly
- Q - Quarterly
- Y - Yearly
c. Legend - click the legend to hide or show.
d. Data Information - hover each point in the chart to show the data information.
e. Navigator - slide the navigator to specific date ranges to manipulate the displayed data.
f. Data Labels - tick the option to show data labels in the chart.
g. Chart Size - choose among the available sizes to resize the chart.
