Installation

Installing through the Windows Installer Interface​

warning

Make sure that all the requirements are met before proceeding with the installation.

  1. Right-click the openit_servicenow_adapter_<version>_x64.msi installer file, then click Run as Administrator.

    Allow the app to make changes to the device to begin. A setup wizard will be displayed.

    Click Next.

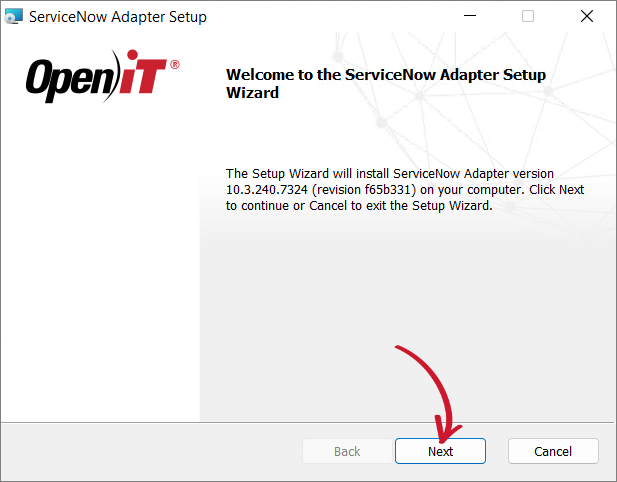

    Installation Wizard

    Installation Wizard

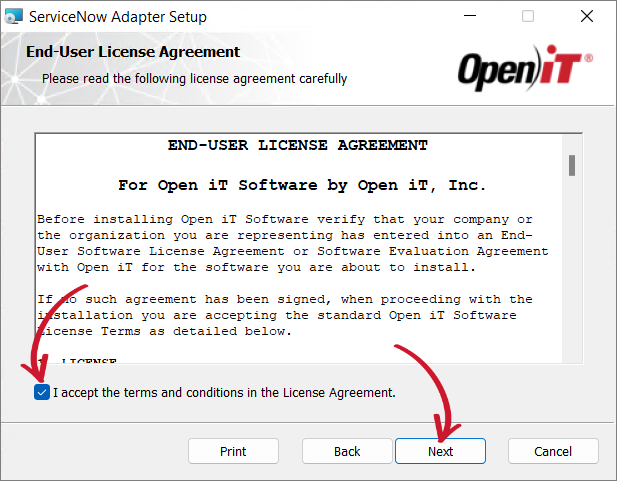

  2. Read the End-User License Agreement before accepting the terms, then click Next.

    End-User License Agreement

    End-User License Agreement


  3. Specify the path to a valid Open iT license with SERVICENOW license key.

    The installation directory is automatically set to the parent directory of the Open iT Analysis Server, as the adapter relies on the server’s configurations.

    Click Next.

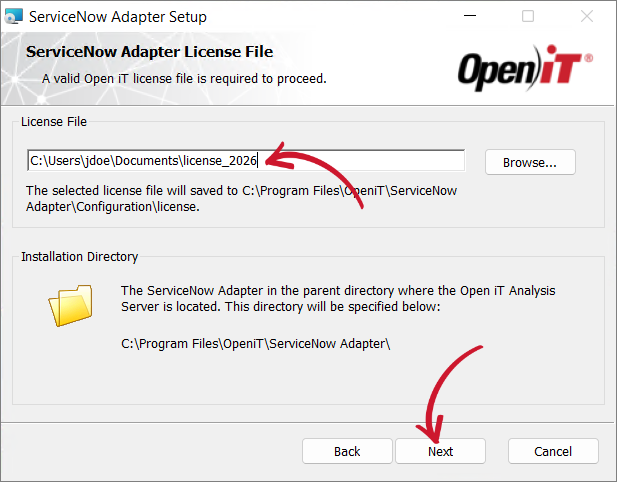

    License File

    License File


  4. Specify a valid ServiceNow Instance URI.

    Select the Authentication Type that will be used to connect to the ServiceNow instance and the Application Scope that determines the Open iT application in the ServiceNow instance.

    Click Next.

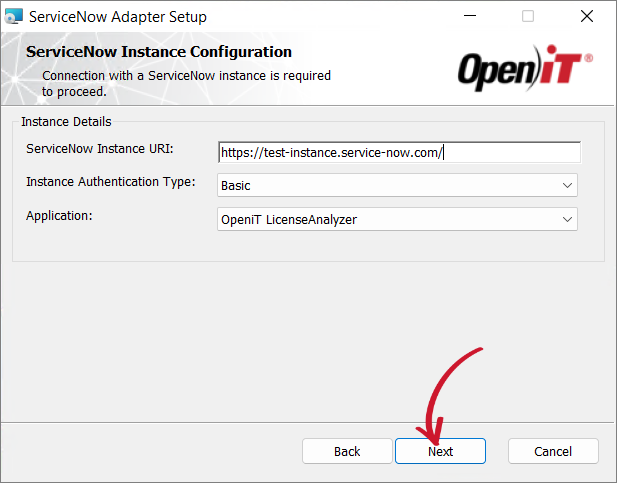

    ServiceNow Instance Configuration

    ServiceNow Instance Configuration


  5. Specify the necessary credentials based on the pre-selected authentication type, then click Next.

    • Basic - requires a Username and Password to connect to the ServiceNow instance

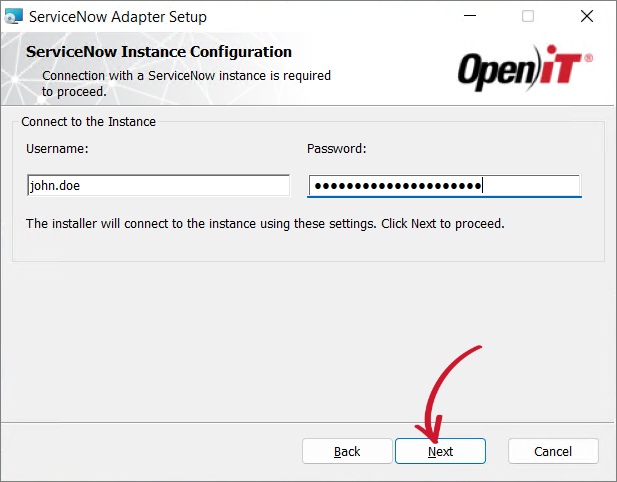

    ServiceNow Instance Configuration - Basic

    ServiceNow Instance Configuration - Basic


    • Bearer Token - requires a Bearer Token to authenticate the connection

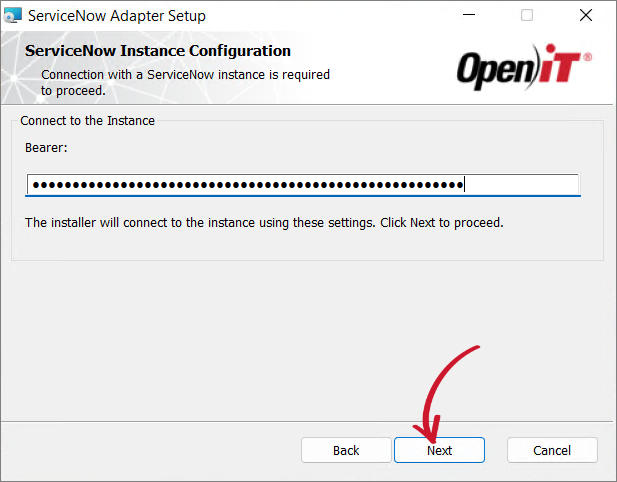

    ServiceNow Instance Configuration - Bearer Token

    ServiceNow Instance Configuration - Bearer Token


    note

    Refer to the How to Get the Access Token Credential from ServiceNow guide for the Bearer Token setup.

    warning

    When using bearer token authentication, whether during the initial installation or when configuring the adapter post-installation, be aware that bearer tokens have a limited lifespan. Once the token expires, any process that depends on it will fail.

    To avoid service interruptions, make sure to:

    • Monitor the token’s expiration timeline.
    • Renew or replace the bearer token before it expires.
    • Update the adapter configuration with the new token as needed.
    • OAuth 2.0 - requires the following details to connect to the ServiceNow instance:
      • Username and Password - valid credentials with specific roles
      • Client ID - the generated ID once an Application Registry is created in the ServiceNow instance
      • Client Secret - an encrypted key which is generated once an Application Registry is created in the ServiceNow instance

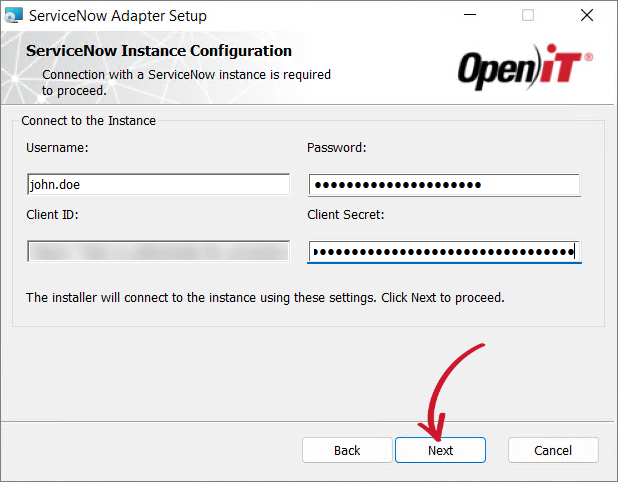

    ServiceNow Instance Configuration - OAuth 2.0

    ServiceNow Instance Configuration - OAuth 2.0


    note

    To obtain the Client ID and Client Secret, follow the steps in Configuring Application Registry in the ServiceNow Instance if you'll use only one Open iT store application.

    If you plan to use both Open iT store applications, follow the steps in Configuring Application Registries with the Same Credentials instead.

    The installation tests the connection to the ServiceNow instance using the provided authentication type and credentials.

  6. Specify the gRPC port for the Open iT ServiceNow Adapter. The default value is 4267.

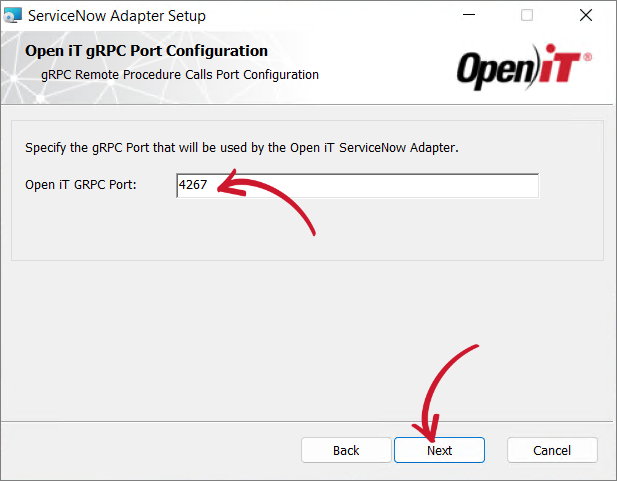

    Open iT gRPC Port Configuration

    Open iT gRPC Port Configuration

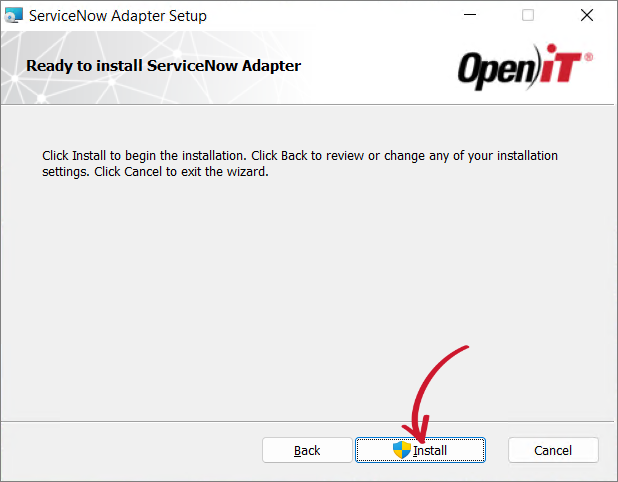

  7. Click Install to start the installation process. If a review of the entries is needed, click Back.

    Ready to Install

    Ready to Install


  8. The installer will set up all necessary files on the computer.

    Click Finish to complete the installation.

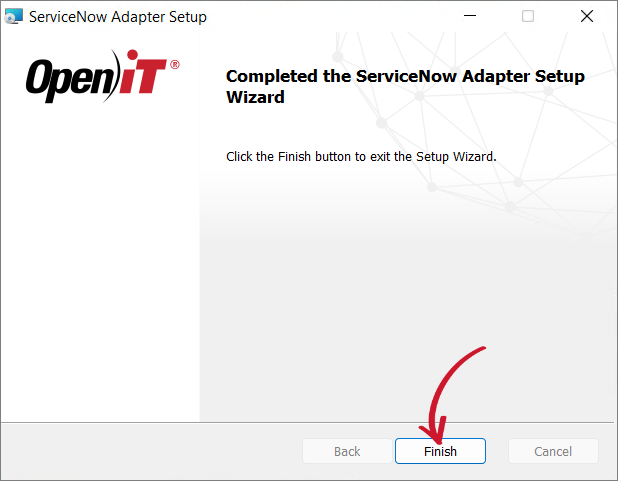

    Installation Complete

    Installation Complete


    note

    Installation logs are located in %LOCALAPPDATA%\Temp\\. The log files are named as MSI<random_characters>.log.

Installing through the Command Line​

  1. Open a command prompt with Administrator level privilege.

  2. Execute the following command:

    Command Syntax
    msiexec /i <msi_file> /l*v <log_file> <options> ADAPTERLICENSEFILE=<license_file> INSTANCEURI=<uri> APPLICATIONSCOPE=<app> AUTHTYPE=<authtype> INSTANCEUSERNAME=<username> INSTANCEPASSWORD=<password> INSTANCEBEARER=<token> CLIENTID=<clientid> CLIENTSECRET=<clientsecret>

    Required Parameters

    ParameterDescription
    /i <msi_file>Use this parameter to specify the path to the Windows installer file.
    l*v <log_file>Use this parameter to specify the path to the installation log file that will be created during installation.
    Required Parameters

    Optional Parameters

    ParameterDescription
    /quietUse this parameter to run the command in silent mode.
    /passiveUse this parameter to run the command in unattended mode — progress bar only.
    Optional Parameters

    Required Properties

    PropertiesDescription
    ADAPTERLICENSEFILE=<license_file>Use this property to specify the path to the Open iT license file with SERVICENOW license key.
    INSTANCEURI=<uri>Use this property to specify a valid ServiceNow instance URI.
    APPLICATIONSCOPE=<app>Use this property of specify an Open iT application from the ServiceNow instance. It accepts la or licenseanalyzer for OpeniT LicenseAnalyzer or lm or licensemonitor for OpeniT LicenseMonitor.
    AUTHYPE=<authtype>Use this property to specify the authentication type that the installer will use to communicate with the specified ServiceNow instance. It accepts basic, bearer, or oauth2. This is case-sensitive.
    INSTANCEUSERNAME=<username>

    INSTANCEPASSWORD=<password>    		Use these properties to specify valid credentials that will be used to authenticate on the specified ServiceNow instance. This is required with AUTHTYPE=basic or AUTHTYPE=oauth2.
    INSTANCEBEARER=<token>Use this property to specify a valid token that will be used to authenticate on the specified ServiceNow instance. This is required with AUTHTYPE=bearer.
    CLIENTID=<clientid>

    CLIETSECRET=<clientsecret>    		Use these properties to specify valid identification keys of the ServiceNow instance that will be used for authentication. This is required with AUTHTYPE=oauth2.
    Required Properties

    Optional Property

    PropertyDescription
    GRPC_PORT=<port_number>Use this to specify the gRPC port that will be used by the ServiceNow Adapter. The default value is 4267.
    Optional Property

    Example (OpeniT LicenseAnalyzer with Basic Authentication)
    msiexec /i "openit_servicenow_adapter_10.3.100_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" INSTANCEURI=https://test-instance.service-now.com/ APPLICATIONSCOPE=la AUTHTYPE=basic INSTANCEUSERNAME=username INSTANCEPASSWORD=password
    Example (OpeniT LicenseAnalyzer with Bearer Token Authentication)
    msiexec /i "openit_servicenow_adapter_10.3.100_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" INSTANCEURI=https://test-instance.service-now.com/ APPLICATIONSCOPE=licenseanalyzer AUTHTYPE=bearer INSTANCEBEARER=token
    note

    Refer to the How to Get the Access Token Credential from ServiceNow guide for the Bearer Token setup.

    warning

    When using bearer token authentication, whether during the initial installation or when configuring the adapter post-installation, be aware that bearer tokens have a limited lifespan. Once the token expires, any process that depends on it will fail.

    To avoid service interruptions, make sure to:

    • Monitor the token’s expiration timeline.
    • Renew or replace the bearer token before it expires.
    • Update the adapter configuration with the new token as needed.
    Example (OpeniT LicenseMonitor with OAuth 2.0)
    msiexec /i "openit_servicenow_adapter_10.3.100_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" INSTANCEURI=https://test-instance.service-now.com/ APPLICATIONSCOPE=lm AUTHTYPE=oauth2 INSTANCEUSERNAME=username INSTANCEPASSWORD=password CLIENTID=clientid CLIENTSECRET=clientsecret
    note

    To obtain the Client ID and Client Secret, follow the steps in Configuring Application Registry in the ServiceNow Instance if you'll use only one Open iT store application.

    If you plan to use both Open iT store applications, follow the steps in Configuring Application Registries with the Same Credentials instead.

    When using the passive mode, wait until the process bar dialog disappears. When using the quiet mode, verify if the installation is complete by opening the Task Manager and checking in the Details tab if the msiexec process is still running.
