Autodesk Token Usage Report

The Token Usage Report provides an overview of Autodesk FLEX token allocation and consumption during the selected reporting period.

The Subscriptions section shows the FLEX package, license type, subscription validity and expiration dates, and the total number of tokens available.

The Usage Summary section displays the number of distinct users, the number of Autodesk features used, the total tokens consumed, and the remaining token balance.

The Daily Tokens Used chart shows token consumption over time, making it easier to identify usage patterns, periods of high demand, and changes in daily token activity.

important

Make sure that the following Open iT Datatypes are present in the Core Server database and successfully loaded in Analysis Server SQL database.

• (93) OLAP Raw Hourly
• (37) License Token Individual Usage
• (139) License Subscription Inventory v2.0

Follow these instructions to generate a report:

1. On the Open iT Reporting Services web portal Home page, click on the LicenseAnalyzer Level 1 folder.



   LicenseAnalyzer Level 1 Folder

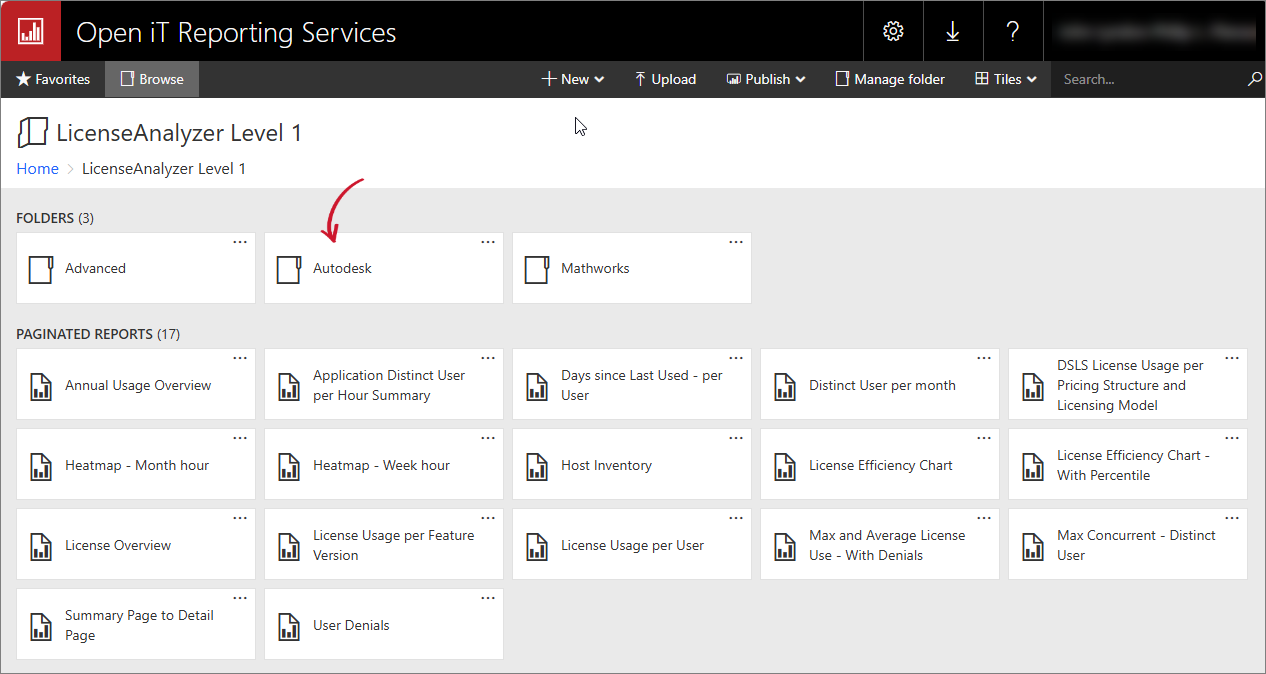

2. Click the Autodesk folder, then select Autodesk Token Usage Report template.



   Autodesk Folder




3. Select the Year, Month, and Vendor License you want to include in the report.

   Parameter	Description
   Year	Use this to specify the time-range for the report yearly such as 2020, 2021, 2022, etc.
   Month	Use this to specify the month of the report you want to view.
   Vendor License	Use this to specify the name of the vendor license hosting the Autodesk application.

   Parameters and Descriptions


   tip

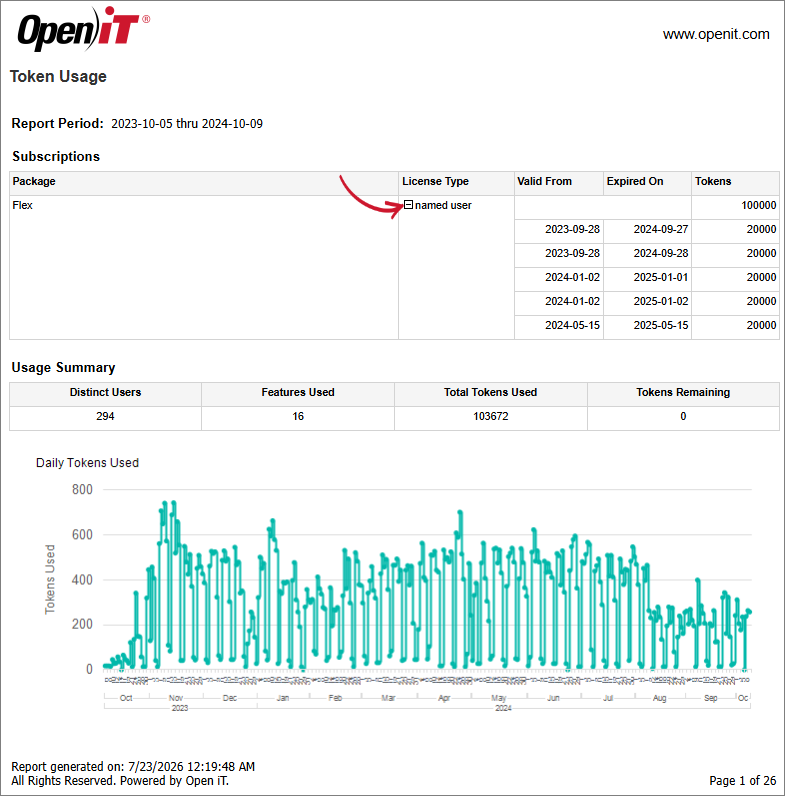

   Click the (+) expand button in the License Type column to see the specific Valid From and Expired On dates.






   Autodesk Token Usage Report




tip

See the Report Viewer Control Toolbar section for more details about its functionalities.
