License Usage Overview

The License Usage Overview report provides a summary of license usage for each feature within a selected period. It displays the maximum concurrent license usage, total elapsed time in hours, and the number of license denials.

This report helps evaluate overall license utilization and identify usage patterns that can support license management and optimization decisions.

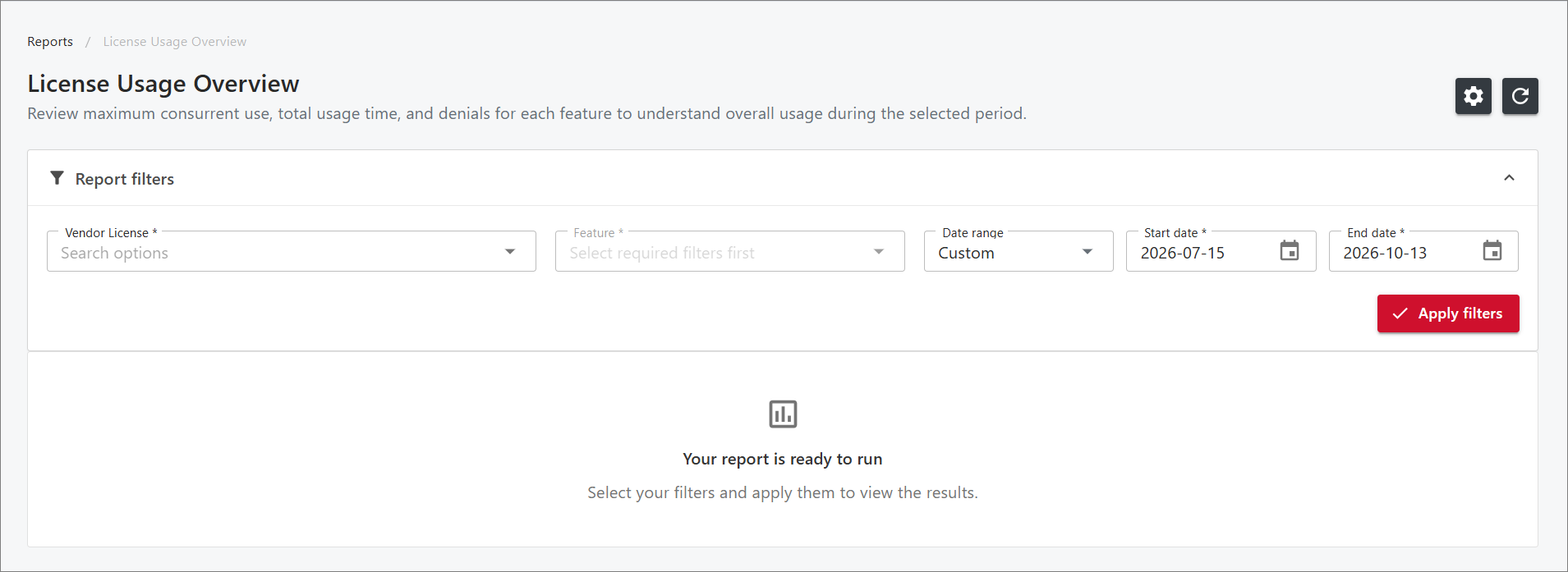

Report Filters​

License Usage Overview Report Filters

License Usage Overview Report Filters


FilterDescription
Vendor LicenseUse this to specify the license file and vendor daemon to include in the report.
FeatureUse this to specify the features to include in the report based on the selected vendor license.
Date RangeUse this to specify the period covered by the report. Select from the following predefined date ranges.
  • This week
  • This month
  • This year
  • Last week
  • Last month
  • Last year
  • Custom - Allows specifying a Start Date and End date.
Filter Descriptions

Generating the Report​

To generate the License Usage Overview report, follow these steps:

  1. On the Reports page, locate License Usage Overview, then click Open Report in Grid View or Open in List View.

  2. (Optional) To adjust the report's time zone, click the gear icon in the upper-right corner of the page, above the Report Filters panel, and select the desired time zone. By default, the report uses the local machine's time zone.

  3. Specify the desired values for the report filters.

  4. Click Apply Filters.

    The report is generated based on the selected filters.

    You can click the Report Filters header to collapse the filter section for a better view of the generated report.

    You can also click the refresh icon next to the gear icon to update the report with the latest available data while retaining the selected filters.

  5. (Optional) To download the generated report, click the download in the upper-right corner of the report panel.

  6. (Optional) To export the complete report, click the Export to Excel button in the upper-right corner of the generated report. All available report components, including summary cards (if applicable), selected filters, and report definitions, are exported into a single Excel file.

    note

    If no report is generated, see Troubleshooting for instructions on resolving the issue.

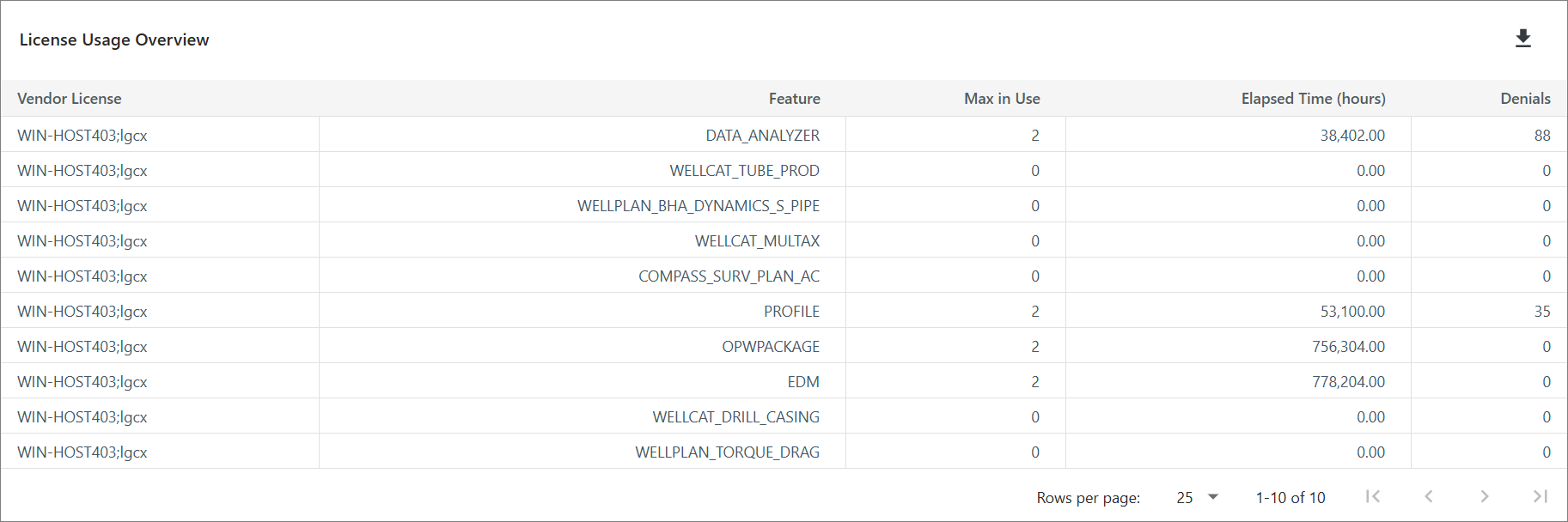

Sample Report​

License Usage Overview

License Usage Overview
