Backend Services

The Backend Services interface provides centralized management and visibility for services connected to Open iT Ingress.

The table view presents key routing information at a glance, including the service name, path, target endpoint, match behavior, and current health state. This allows administrators to quickly verify routing rules and detect potential service issues.

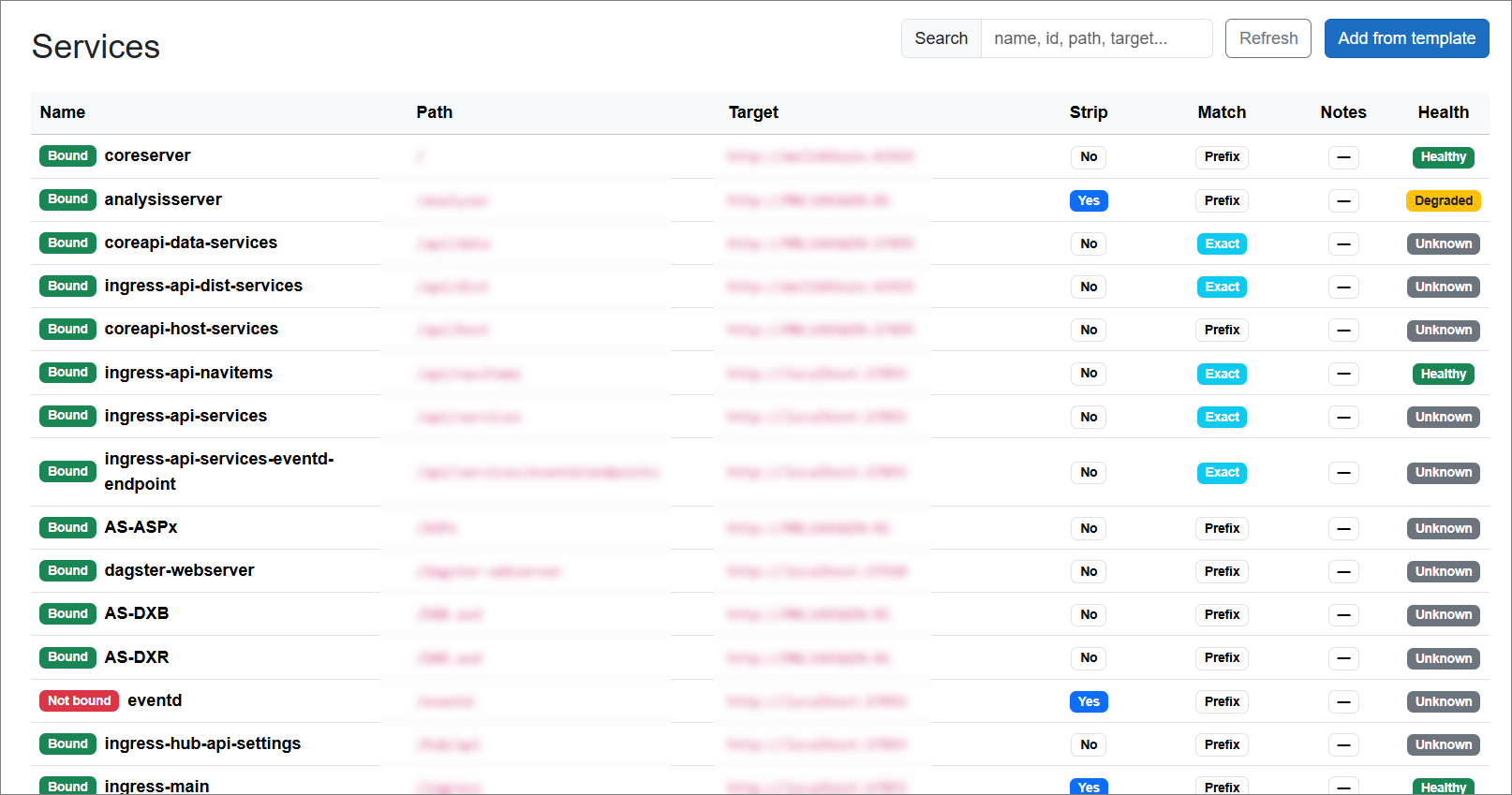

Backend Services

Each row in the table represents a backend service with the following information:

Column	Description
Name	The unique identifier of the service registered with Ingress. A status tag appears before the service name: Bound – Indicates that the service is active and successfully running. Not Bound – Indicates that the service is not currently running.
Path	The external request path exposed by Ingress where the service is accessible.
Target	The backend endpoint (URI) to which matching requests are forwarded.
Strip	Determines whether the defined path is removed before the request is sent to the backend service. Yes – The configured path prefix is stripped from the incoming request. No – The full original request path is forwarded to the backend. This is typically required for services that expect the complete path structure.
Match	Specifies how incoming requests are evaluated against the configured path. When multiple match types could apply, Exact match takes priority over Prefix and Suffix matches. Prefix – Matches requests that start with the defined path. Suffix – Matches requests that end with the defined path. Exact – Matches only requests that exactly match the defined path.
Notes	Displays configuration guidance or recommendations related to the service setup.
Health	Indicates the overall operational status of the service based on backend health checks.

Ingress Backend Services Details

To view detailed information about a service, click the corresponding service row in the table. This expands the entry and displays its configuration and operational status.

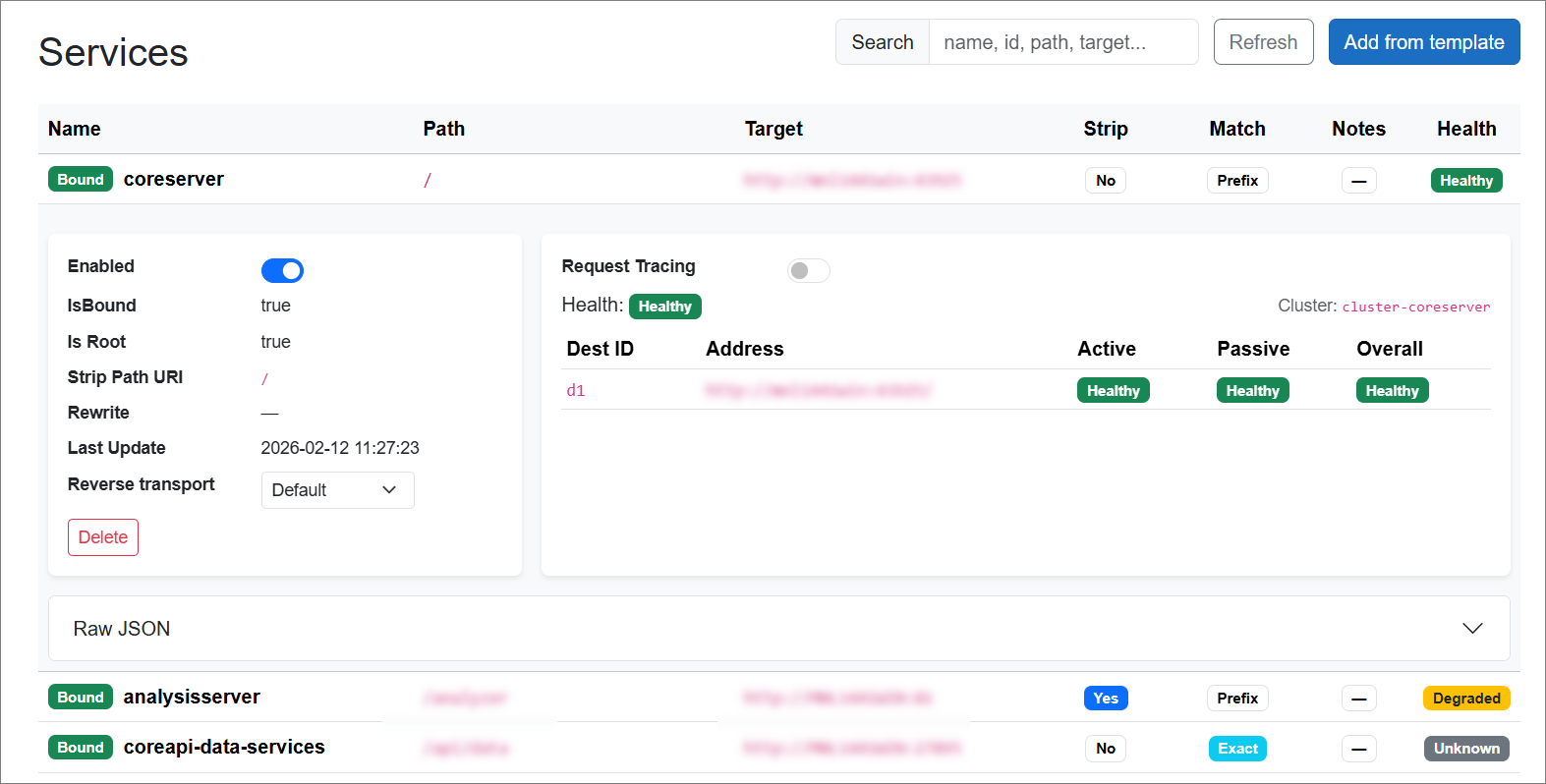

Backend Services Drilled-down View

The details view contains the following sections:

Service Configuration

This panel displays the configuration and operational settings of the service.

Details	Description
Enabled	Toggles whether the service is active. When enabled, the service can receive requests routed through Ingress.
IsBound	Indicates whether the service is successfully bound to the Ingress routing system.
IsRoot	Indicates whether the service handles requests for the root path (/).
Strip Path URI	Shows the path that will be removed from incoming requests before they are forwarded to the backend service.
Rewrite	Displays any configured path rewriting rules applied before forwarding requests.
Last Update	Shows the timestamp of the most recent configuration update for the service.
Reverse Transport	Specifies the transport configuration used when forwarding requests to the backend service.
Delete	Removes the service configuration from Ingress.

Service Configuration Details

Health and Cluster Information

This panel shows the health status and backend destinations associated with the service.

Details	Description
Request Tracing	Enables or disables request tracing for the service. When enabled, request activity can be monitored on the Proxy Traces page.
Health	Displays the overall health status of the service.
Cluster	Indicates the backend cluster associated with the service.
Dest ID	The identifier of the backend destination within the cluster.
Address	The network address of the backend service instance.
Health Check	Displays the status of backend service health based on active polling, passive monitoring of request traffic, and the combined overall health result. Active – The reverse proxy periodically polls the backend service at a configured interval to verify that it is responding correctly. If the service fails to respond or returns an invalid response, it may be marked as unhealthy. Passive – The reverse proxy evaluates actual client requests routed to the backend service. If user requests consistently fail (for example, due to connection errors or invalid responses), the service may be marked as unhealthy based on observed traffic behavior. Overall – Represents the combined health status derived from both active and passive checks. If either the active or passive health check reports an issue, the overall status may be marked as Degraded to alert administrators of a potential problem.

Health and Cluster Information Details

Access Control

Authentication

Ingress supports multiple authentication methods to verify the identity of users or clients accessing services.

The following authentication methods can be configured in Ingress:

Authentication	Description
Negotiate	Uses Windows Integrated Authentication. The system attempts Kerberos authentication first and falls back to NTLM if Kerberos is not available.
OIDC	Uses OpenID Connect (OIDC) to authenticate users through an external identity provider, such as Azure AD or other OIDC-compatible services.
IPWhitelist	Allows requests only from IP addresses that are explicitly included in a configured whitelist.

Authorization Policies

Service Authorization Policy

In addition to authentication, services connected to Ingress can also enforce an authorization policy that determines who is allowed to access a specific service.

While Ingress may require authentication, this does not automatically mean that all proxied services will use the same authentication rules. An authorization policy allows each service to define its own access control requirements.

This ensures that only requests meeting the configured policy—such as authenticated users, administrators, local requests, or approved IP addresses—are permitted to access the service.

The following authorization policies can be applied to a service:

Authorization Policies	Description
WindowsAuthentication	Allows access only to users who successfully authenticate using Windows authentication.
IngressAuthentication	Allows access only to users who successfully authenticate using the authentication method configured in Ingress. The service will use whichever authentication method is currently enabled in the Ingress configuration.
IngressAuthenticationAdministratorOnly	Allows access only to administrator users authenticated through Ingress. The list of administrators is defined in the Authentication.json configuration file.
LocalMachineOnly	Allows access only from the local machine where the service is running.
WhitelistedIPOnly	Allows access only to requests coming from IP addresses included in a configured whitelist.

Authorization Policies

Service Management

Adding Service from Template

You can manually add a service from a template by following these steps. This is particularly useful when automatic service registration fails.

Here you go—same content, just using #### for each step:

Step 1: Add a Service from Template

In the upper-right corner of the interface, click Add from Template.

Step 2: Select a Service

From the available drop-down list, select the service to register.

Step 3: Configure the Service

Provide the target URI of the service.

Step 4: Add the Service

Click Add Services.

The newly added service will appear in the Services table.

Enabling or Disabling Services

To enable or disable a service:

Step 1: Open the Service Details

In the Services table, click the service row to open the details view.

Step 2: Enable or Disable the Service

Locate Enable, then toggle the switch.

warning

Changes take effect immediately. There is no Save button. Once the switch is toggled, the service is automatically enabled or disabled.

Advanced Configuration

Modifying the Service JSON Configuration

For advanced configuration, you can directly modify the service definition using its raw JSON representation.

warning

The raw JSON configuration controls critical service settings. Only administrators should modify this section. Incorrect changes may disrupt routing or make services inaccessible.

To access this option:

Here it is in the same style:

Step 1: Open the Service Details

In the Services table, click the service row to open the details view.

Step 2: Go to the Raw JSON Section

Scroll down to the Raw JSON section.

Step 3: Edit the Configuration

Click Edit JSON to modify the configuration.

Step 4: Save the Changes

Apply the changes, then click Save.

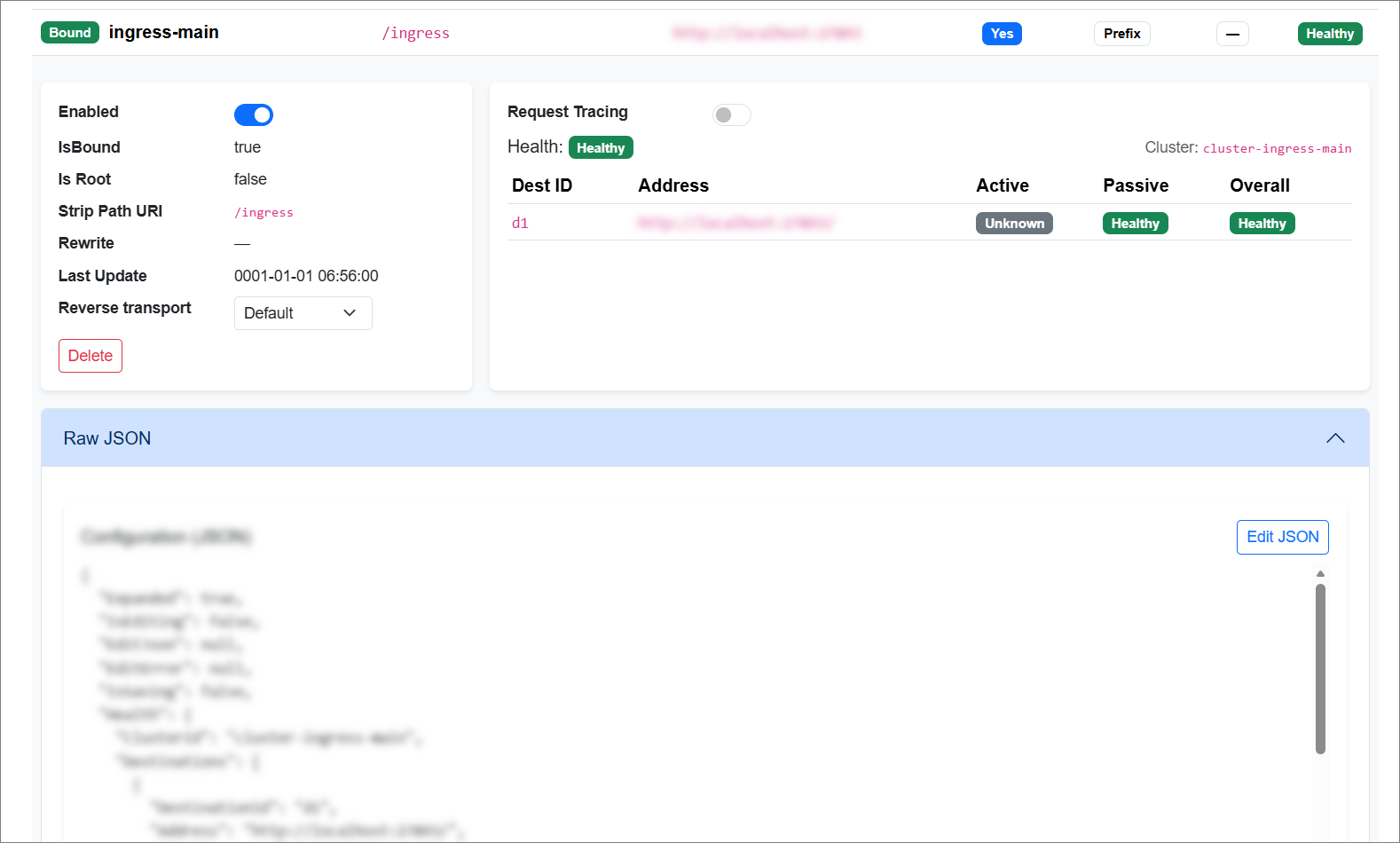

Backend Services Raw JSON Editor

Enabling Proxy Tracing

To enable proxy tracing for a service:

Here it is in the same format:

Step 1: Open the Service Details

In the Services table, click the service row to open the details view.

Step 2: Enable Request Tracing

Locate Request Tracing, then toggle the switch to enable it.

Step 3: View Proxy Traces

Proxy traces for the selected service will be enabled and can be viewed on the Proxy Traces page.
