# Geoactive License Manager

# Introduction

Open iT supports Geoactive usage by polling the license servers at regular intervals to get the current status of its license use and availability.

For this collection, the data source is through an API. The data collector/preprocessor initiates the license status utility every hour using a 5-minute sample interval, triggering the data collection process. The license status utility requests the current license usage data from the license manager portal. After the license manager portal provides the requested data, the license status utility passes this information to the data collector/preprocessor. The data collector/preprocessor processes the data, preparing it for transmission. Finally, the preprocessed data is sent to the Core Server every night, according to the client's timezone, for further storage, completing the license usage data collection and processing.

This will produce the following aggregated data types used for historical reporting:

• (49) Host User License Use

• (93) OLAP Raw Hourly

• (94) OLAP User Concurrency

• (95) Usergroup License Use v3.0

• (102) OLAP Total Use


The following sections will guide you in setting up the necessary configuration to collect and send the required data to the server.

# Requirements

• An Open iT Client connected to an Open iT Server or a coexistent Open iT setup
• Activated LicenseAnalyzer collection and license poller
• Valid URL with port number of the Geoactive API
• Vendor license GUID
• Reporting API key from the Geoactive License Server Manager

# Configuring Data Collection

These are the required steps to configure collection of usage data.

1. Go to the Components directory, which is by default in C:\Program Files\OpeniT\Core\Configuration\Components, and back up the licpoll.xml configuration file.

2. Open a command prompt with Administrator level privileges.

3. Go to the bin directory, which is by default in C:\Program Files\OpeniT\Core\bin, run the command:

   Command Syntax

    cd $BIN_DIR

   Example

    cd C:\Program Files\OpeniT\Core\bin

4. Once in the directory, activate the collection of Geoactive data, run the command:

   Command Syntax

    openit_confinit -c "licpoll.license-types.genericlicense-geoactive-sample.active=true"

5. Set the arguments to the status command, run the command:

   Command Syntax

    openit_confinit -c "licpoll.license-types.genericlicense-geoactive-sample.status-command.arguments=--url <URL> --id <ID> --key <KEY>"

   where:

   Parameter	Description
   --url <URL>	Use this to specify the base URL of the Geoactive License Server.
   --id <ID>	Use this to specify the vendor license GUID.
   --key <KEY>	Use this to specify the report API key. The API key is product-specific and only a single key per vendor license is supported.

   Parameters for Configuring Geoactive Data Collection


   Example

    openit_confinit -c "licpoll.license-types.genericlicense-geoactive-sample.status-command.arguments=--url http://localhost:3000 --id 87A410D0-710A-36C1-F8L7-1159E78465C4 --key samplekey"

   Parameter	Description
   --from <FROM_DATE>	Use this to process checkouts starting from a specific date. Folow the YYYY-MM-DD date format.
   --max <MAX_LICENSES>	Use this to set the maximum number of licenses.

6. Run the following command to update the configuration files:

   Command Syntax

    openit_confbuilder --client

   Make sure no errors are encountered.

These instructions assume your configuration directory is /var/opt/openit/etc.

1. Go to the Components directory, which is by default in /var/opt/openit/etc/Components, and back up the licpoll.xml configuration file.

2. Go to the bin directory, which is by default in /opt/openit/bin, run the command:

   Command Syntax

    cd $BIN_DIR

   Example

    cd /opt/openit/bin

3. Once in the directory, activate the collection of Geoactive data, run the command:

   Command Syntax

    ./openit_confinit -r /var/opt/openit/ -d /var/opt/openit/etc/ -c "licpoll.license-types.genericlicense-geoactive-sample.active=true"

4. Set the arguments to the status command, run the command:

   Command Syntax

    ./openit_confinit -r /var/opt/openit/ -d /var/opt/openit/etc/ -c "licpoll.license-types.genericlicense-geoactive-sample.status-command.arguments=--url <URL> --id <ID> --key <KEY>"

   where:

   Parameter	Description
   --url <URL>	Use this to specify the base URL of the Geoactive License Server.
   --id <ID>	Use this to specify the vendor license GUID.
   --key <KEY>	Use this to specify the report API key. The API key is product-specific and only a single key per vendor license is supported.

   Parameters for Configuring Geoactive Data Collection


   Example

    ./openit_confinit -r /var/opt/openit/ -d /var/opt/openit/etc/ -c "licpoll.license-types.genericlicense-geoactive-sample.status-command.arguments=--url http://localhost:3000 --id 87A410D0-710A-36C1-F8L7-1159E78465C4 --key samplekey"

   Parameter	Description
   --from <FROM_DATE>	Use this to process checkouts starting from a specific date. Folow the YYYY-MM-DD date format.
   --max <MAX_LICENSES>	Use this to set the maximum number of licenses.

5. Run the following command to update the configuration files:

   Command Syntax

    ./openit_confbuilder --client

   Make sure no errors are encountered.

Refer to the Geoactive Data Collection Configuration table to learn more about Geoactive configuration in licpoll.xml.

Object Name	Accepted Value	Description
active	Boolean (true or false)	Setting this to true activates Geoactive usage data collection.
type	String (i.e., GenericLicense)	The license manager type.
interval	Timespan (e.g., P30S, P5M, P1H)	The span of time between each polling round (it is recommended to set a value no less than P1M).
offset	Timespan (e.g., P30S, P5M, P1H)	The span of time the aligned poll time decided by interval is shifted.
product-name	String (e.g., %host%;geoactive)	This object is defined if a vendor license name other than the default %host%;geoactive will be used.
license-server	String (e.g., hou105lin)	The license server name.
status-command	FileName (i.e., ${OpeniT.directories.bin}/openit_geoactive.exe)	The binary used to obtain status from the license manager.
status-command.arguments	String (e.g., --url http://localhost:3000 --id 87A410D0-710A-36C1-F8L7-1159E78465C4 --key samplekey)	The arguments used for the status command.

Geoactive Data Collection Configuration

# Verifying Data Collection

After configuration, you can verify that the data is collected by following these steps:

1. Open a command prompt with Administrator level privileges.

2. Go to the bin directory, which is by default in C:\Program Files\OpeniT\Core\bin, run the command:

   Command Syntax

    cd $BIN_DIR

   Example

    cd C:\Program Files\OpeniT\Core\bin

3. Run the command:

   Command Syntax

    openit_licpoll -# 1

4. Verify that the temp directory, which is by default in C:\ProgramData\OpeniT\Data\temp, contains a LicPoll directory containing .data and status-*.log files.

1. Go to the bin directory, which is by default in /opt/openit/bin, run the command:

   Command Syntax

    cd $BIN_DIR

   Example

    cd /opt/openit/bin

2. Run the command:

   Command Syntax

    ./openit_licpoll -# 1

3. Verify that the temp directory, which is by default in /var/opt/openit/temp, contains a LicPoll directory containing .data and status-*.log files.

# Sample Reports

# Historical Reports

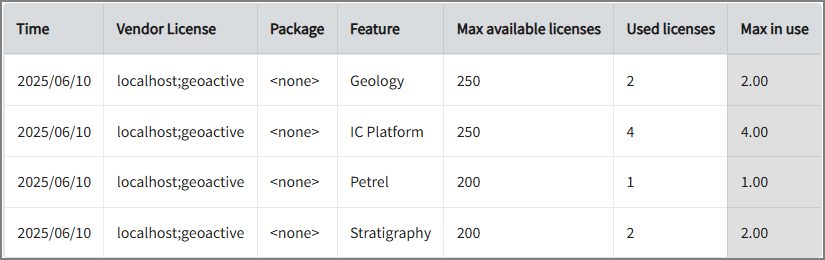

# Max Available vs Max in Use

This sample report compares max in-use licenses against max available licenses.
It offers several key benefits:

• Optimized License Allocation – helps ensure you are not over-purchasing licenses you don't need or under-provisioning.
• Cost Savings – identifies opportunities to downgrade or redistribute licenses, reducing unnecessary expenses.
• Usage Trends & Capacity Planning – shows peak usage patterns, allowing better forecasting for future needs.
• Avoiding Service Disruptions – helps prevent situations where users cannot access software due to reaching the license limit.
• Compliance & Audit Readiness – provides a usage record to ensure compliance with vendor agreements and avoid penalties.
• Performance & Productivity Insights – helps assess whether certain teams or departments are under-utilizing or over-utilizing software.

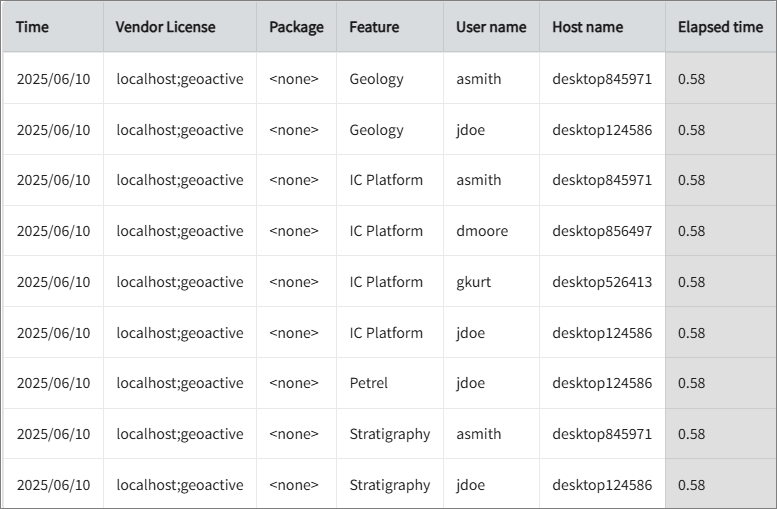

# Feature Elapsed Time per User

This sample report gives you helpful insights into software use, performance trends, and user behavior.
It offers several key benefits:

• User Efficiency Analysis – tracks how much time users spend on specific features to help assess productivity.
• Identifying Workflow Issues – highlights any delays or inefficiencies in processes that could be improved.
• Usability & UX Insights – points out features that take longer to use, which could indicate design or functionality improvements.
• Training & Support Guidance – helps identify users who might need extra training to use a feature more effectively.
• Compliance Tracking – makes sure users are spending the right amount of time on regulated tasks.
• Resource & License Optimization – finds underused features or areas where too much time is spent, helping with better resource allocation.

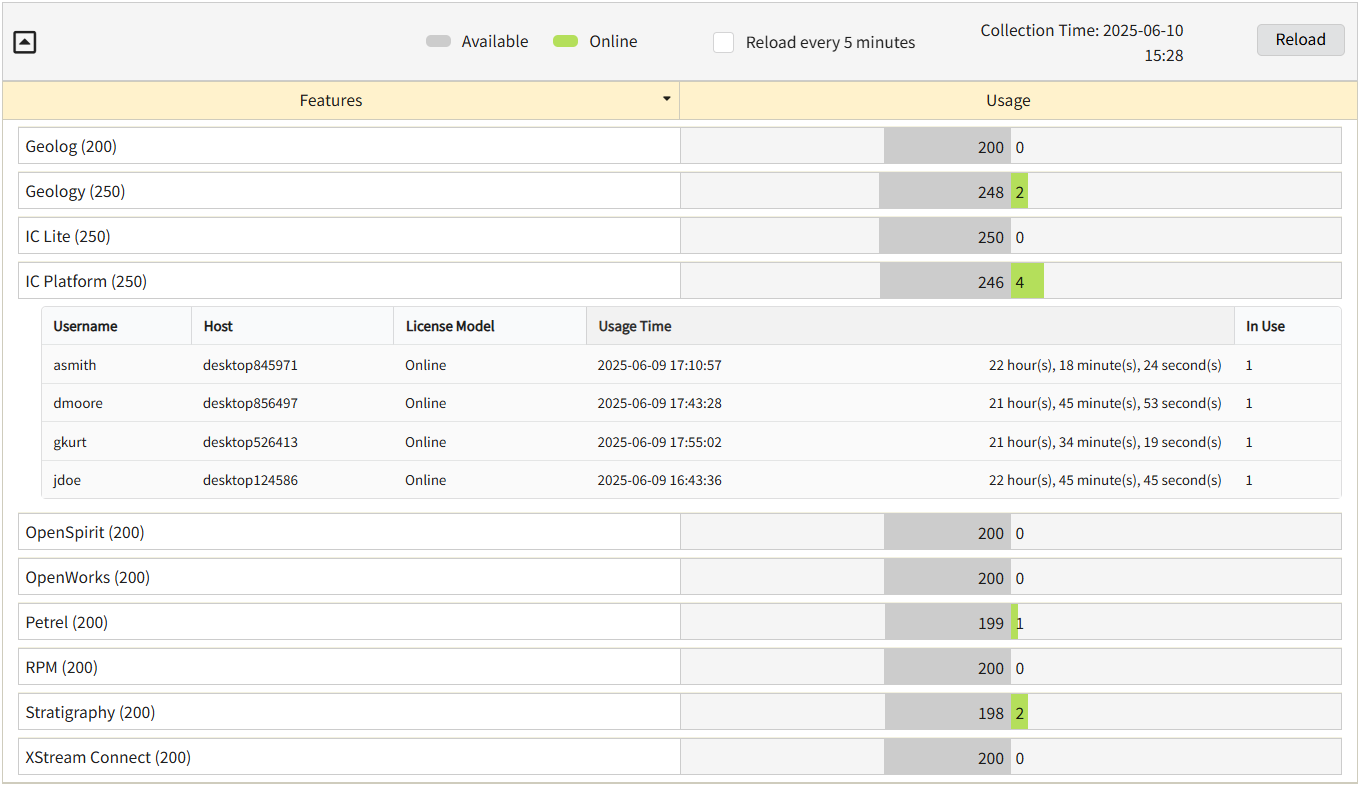

# Real-time Report

This sample report shows a drilled-down feature view of the assigned licenses in use and the licenses available.
