# Project Mapping

# Introduction

Open iT uses the openit_setid application to register a user to specific projects.

The following sections will guide you on setting up the necessary configuration to list project options and set a user project so that the user and UID classifications in your reports includes the user project ID.

From this:

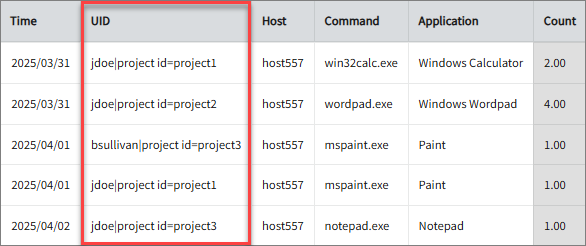

To this:

This configuration affects the following data types:

• (53) Windows Module Usage

• (58) UsageAnalyzer Events

• (87) Process Accounting

• (130) Windows Application Usage


# Requirements

• An Open iT Core Client connected to an Open iT Core Server or a coexistent Open iT Core setup
• Activated application usage collection

# Listing Project Options

List the projects a user can select and set. A user won't be able to set a random string as a project; only those available in this file.

1. Open the projectmap.oconf file in the Configuration directory, which is by default in C:\Program Files\OpeniT\Core\Configuration.

2. Locate and set the value of root.setid.gui.title to configure the title of the interface.

   projectmap.oconf

   7|	title
   8|	{
   9|	    type=string
   10|		value="Select Project"

3. Locate root.setid.projects.

   projectmap.oconf

   18|	projects
   19|	{
   20|	    description=Explicit projects for explicit users
   21|		sample
   22|     {
   23|         description=Sample project. List users separating them with the separator or with newline.
   24|         type=list
   25|         separator=;
   26|         nobody;none
   27|     }

4. Add nodes based on the sample node under the projects node and configure it as needed.

   Each project object can have four (4) sub-objects:

   • description
   • type
   • separator
   • usernames



   You can list a user name under multiple projects. You can specify multiple users in a project separated by your specified separator (e.g., ;) or new lines.

   You can attach the following flags in the project or user names within parentheses:

   • global - you can use this flag for projects only. It means the project is available for everyone.

     Example

     21|		project1(global)
     22|     {
     23|         description=Sample project. List users separating them with the separator or with newline.
     24|         type=list
     25|         separator=;
     26|     }

   • default - you can use this flag for project and user names. If this is set to a project, the project will be used if the user does not select a project.

     Example

     21|		project2(global,default)
     22|     {
     23|         description=Sample project. List users separating them with the separator or with newline.
     24|         type=list
     25|         separator=;
     26|     }

     If this is set for a user, the project under which you listed the user is the default.

     Example

     21|		project3
     22|     {
     23|         description=Sample project. List users separating them with the separator or with newline.
     24|         type=list
     25|         separator=;
     26|         jdoe;jdelacruz
     27|         tmax(default)
     28|     }

   If multiple projects are flagged as default, the last defined is used (if the user is in all), but if the user is flagged as default in any project, the first project where the user is tagged as default is used.

5. Save the changes.

   By default, these updates are delivered from the server to client machine(s) every six hours — specifically at 6 AM, 12 NN, 6 PM, and 12 MN. If you want to deliver the updates immediately, follow the instructions in the Manually Creating and Downloading a Distributable Configuration Files Package section.

# Setting a Project

There are two ways to set a project for specific users:

• Setting a project manually through the command line
• Setting a project manually through a user interface

# Setting a Project Manually through the Command Line

These are the required steps to set a project through the command line.

1. Open a command prompt with Administrator level privileges.

2. Go to the bin directory, which is by default in C:\Program Files\OpeniT\Core\bin, run the command:

   Command Syntax

    cd $BIN_DIR

   Example

    cd C:\Program Files\OpeniT\Core\bin

3. Once in the directory, set your project. Run the command:

   Command Syntax

    openit_setid --set <project_name>

   where <project_name> is the name of the project you want to set.

   Command Syntax

    openit_setid --set project1

   Parameter	Description
   -q, --query	Use this to launch the user interface, allowing you to select a project from a list of projects. Note: If you don't belong to a project and you use this parameter, N/A is defined.
   -l <exe-path>, --launch <exe-path>	Use this to launch an application after saving a project. You can use this with --set or --query. Examples: openit_setid --set project1 --launch C:\Windows\system32\notepad.exe Running this sets project1 as project and launches the Notepad application. openit_setid --query --launch C:\Windows\system32\notepad.exe Running this launches the user interface for selecting a project. After you choose a project, the Notepad application will launch.
   -v, --verbose	Use this to output detailed information about what openit_setid is doing.

   Optional Parameters
   Refer to the projectmap.oconf file in the Configuration directory, which is by default in C:\Program Files\OpeniT\Core\Configuration, to make sure that you indicate a project where you belong. If not, the default project available for you will be used, or N/A if no default project is defined.

   Make sure no errors are encountered.

# Setting a Project Manually through a User Interface

# Creating an openit_setid Shortcut

You can manually set a project through a user interface. First, you must create a desktop shortcut for openit_setid.exe. These are the required steps to create the shortcut.

1. Right-click on your desktop, click New, and then click Shortcut.

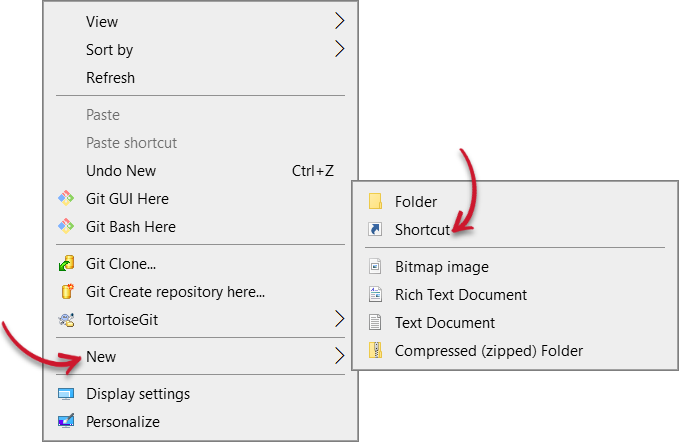

   Create openit_setid.exe Shortcut



   A window will appear.

2. Type in or browse for the absolute path to openit_setid.exe, which is by default C:\Program Files\OpeniT\Core\bin\openit_setid.exe, then click Next.

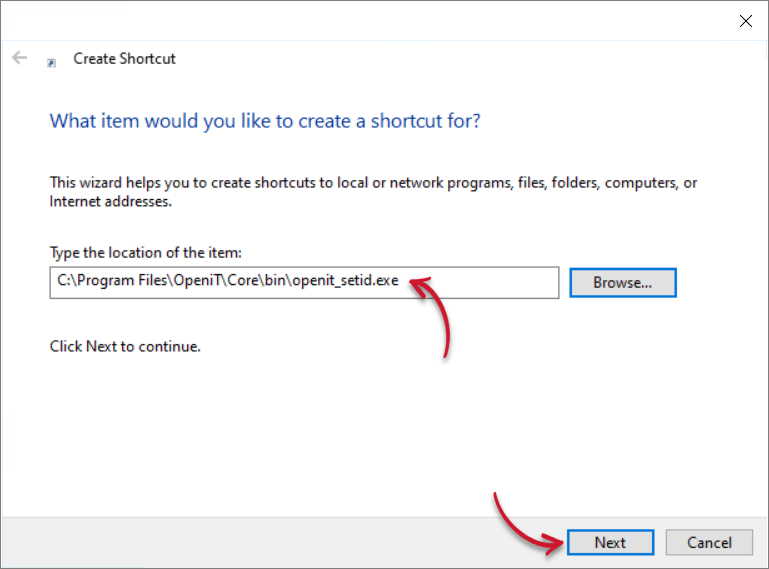

   Specify openit_setid.exe Path



3. Type in the name for the shortcut, then click Finish.

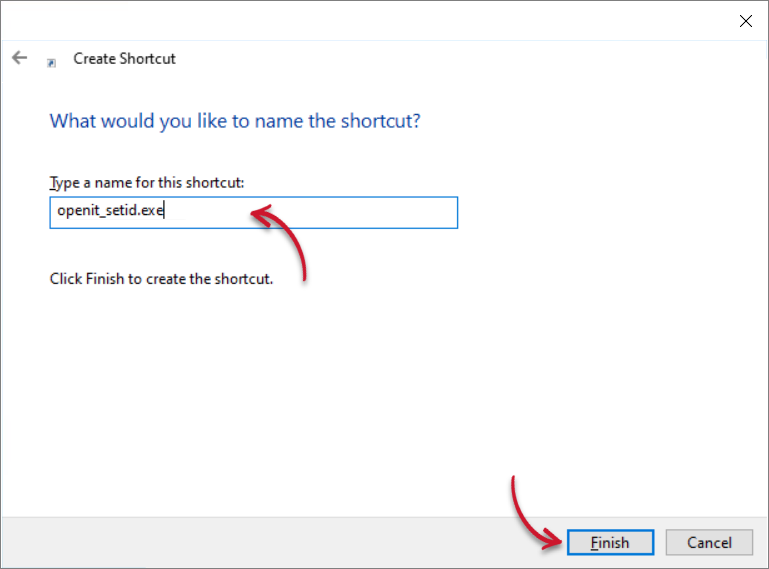

   Specify Shortcut Name



4. Right-click the shortcut you created, then click Properties.

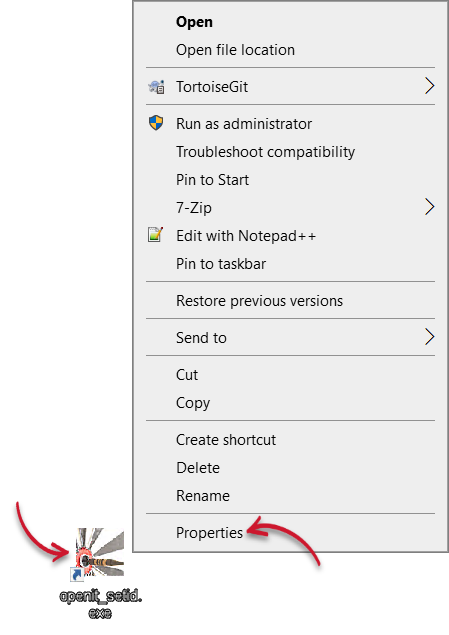

   Shortcut Properties



5. Replace the value of target with the following:

   Target Value

    <openit_set_id_path> --query

   where <openit_set_id_path> is the absolute path to openit_setid.exe, which is by default C:\Program Files\OpeniT\Core\bin\openit_setid.exe,

   Example

    "C:\Program Files\OpeniT\Core\bin\openit_setid.exe" --query

   Then click Apply, then click OK.



   Apply Shortcut Properties



# Setting a Project

1. Double-click the shortcut you created. A user interface will appear.

2. Select your project, then click OK.

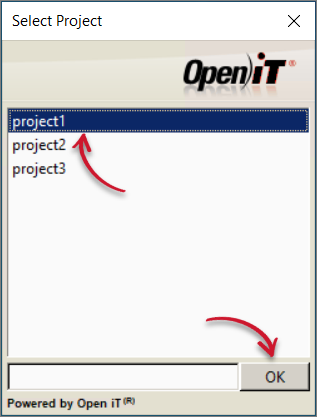

   Select Project



# Verifying a Set Project

Verify that you successfully set the project.

1. Go to the temp directory, which is by default in C:\ProgramData\OpeniT\Data\temp.

2. Verify that there is a generated project_id-<username>*.idval file (e.g., project_id-jdoe-1.idval).

3. Open said file and verify that it contains the timestamp and name for the set project.

   Example

   1   time=3953089194133
   2   project=project1

# Creating Project and Username Classifications

These are the required steps to create a virtual classification from the UID classification to separate it into username and project to allow project chargeback implementation.

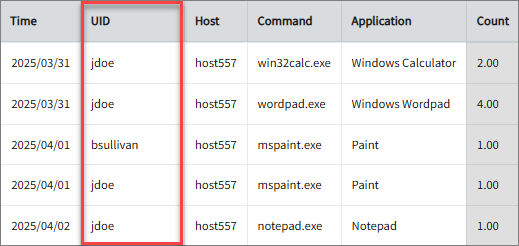

From this:

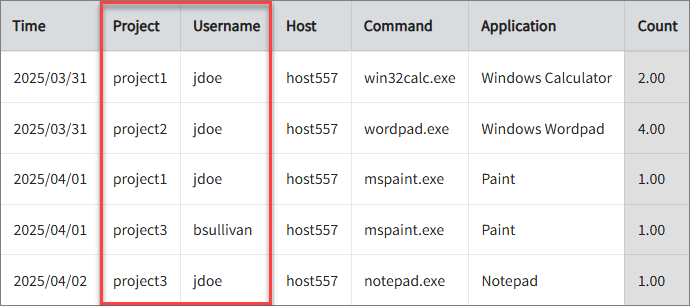

To this:

1. Go to the mappings directory, which is by default in C:\Program Files\OpeniT\Core\Configuration\mappings.

2. In the default report, the project id is appended to the username in the format <username>|projectid=<project_name>. With this configuration, we will use the separator | and fields[0] for the username and the separator = and fields[1] for the project id.

   Create a file named u-id with the following contents:

   u-id

   [SUB-MAPPINGS]:
   sub {
       my( $value ) = @_;
       my $sep = '|';
       my @fields = split( /\Q$sep/, $value );
       $sep = '\\\\';
       @fields = split( $sep, $fields[0] );
       return pop @fields;
   }

   Save the file.

   Create a file named project-id with the following contents:

   project-id

   [SUB-MAPPINGS]:
   sub {
       my( $value ) = @_;
       my $sep = '|';
       my @fields = split( /\Q$sep/, $value );
       $sep = '=';
       @fields = split( /\Q$sep/, $fields[1] );
       return pop @fields;
   }

   Save the file.

3. Open the acc_types file in the Configuration directory, which is by default in C:\Program Files\OpeniT\Core\Configuration.

4. Locate (Process^Accounting, and add the following lines before Domain,:

   acc_types

   (Project,Project^Names,
    ((UID,project-id))),
   (Username,User^ID,
    ((UID,u-id))),

   That is,

   acc_types

   1304|   Exit^status,
   1305|   (Program^class,Mapping^from_command^to^classes,
   1306|    ((Command,sample_mapping))),
   1307|   (Project,Project^Names,
   1308|    ((UID,project-id))),
   1309|   (Username,User^ID,
   1310|    ((UID,u-id))),
   1311|   Domain,

5. Save the changes.

6. Open the classvar_mapping_config file in the Configuration directory, which is by default in C:\Program Files\OpeniT\Core\Configuration.

7. Locate (Process^Accounting, and add Project and Username after Program^class.

   acc_types

   284|    (Process^Accounting,
   285|    (Command, Exit^status, Prime^time, Application, GID, UID, Program^class, Project, Username),
   286|    ((OS, Host), (Architecture, Host), (Domain, Host))),

8. Save the changes
